SPECIFICATIONS
-
Powerplant: Lycoming AEIO-390-A1B6
-
Horsepower @ RPM: 210 HP @ 2,700 rpm
-
Recommended Engine TBO: 1,400 hours
-
Constant-Speed Propeller: MT Composite MTV-15-B-C/C193-25
-
Propeller Diameter: 76 in.
-
Length: 22.9 ft.
-
Height: 7.7 ft.
-
Wingspan: 30.9 ft.
-
Wing Area: 164 sq. ft.
-
Wing Loading: 11.9 lb./sq. ft.
-
Power Loading: 8.6 lb./HP
-
Seats: 2 (tandem)
-
Cabin Length: 8 ft. 10 in.
-
Cabin Width: 2 ft. 6 in.
-
Cabin Height: 3 ft. 11 in.
-
Empty Weight (Typical): 1,330 lbs.
-
Max. Gross Weight (Normal): 1,950 lbs.
-
Useful Load (Normal): 620 lbs.
-
Payload with Full Fuel (Normal): 380 lbs.
-
Max. Gross Weight (Acrobatic): 1,800 lbs.
-
Useful Load (Acrobatic): 470 lbs.
-
Payload with Full Fuel (Acrobatic): 230 lbs.
-
Fuel Capacity: 43 gal. (40 gal. usable)
-
Oil Capacity: 10 qt.
-
Baggage Capacity: 100 lbs. (10.4 cu. ft.)
PERFORMANCE
-
Acrobatic Limit Loading: +6 g / -5 g
-
Takeoff Distance, Ground Roll: 520 ft.
-
Takeoff Distance Over 50-ft. Obstacle: 957 ft.
-
Max. Demonstrated Crosswind Component: 17 kts.
-
Rate of Climb, Sea Level: 1,498 fpm
-
Maximum Level Speed, Sea Level: 161 mph TAS
-
Cruise Speed / Endurance with 45-Min. Reserve @ 75% Power: 149 mph / 2.6 hrs.
-
Fuel Consumption @ Altitude: 12.0 gph @ 7,500 ft.
-
Service Ceiling: 20,000 ft.
-
Landing Distance Over 50-ft. Obstacle: 1,346 ft.
-
Landing Distance, Ground Roll: 542 ft.
LIMITED AND RECOMMENDED AIRSPEEDS
-
VX (Best Angle): 57 mph IAS
-
VY (Best Rate): 81 mph IAS
-
VA (Design Maneuvering): 110 mph IAS
-
VNO (Maximum Structural Cruising): 160 mph CAS
-
VNE (Never Exceed): 200 mph CAS
-
VR (Rotation): 58 mph IAS
-
VS (Stall, Clean): 58 mph IAS
STANDARD EQUIPMENT
INSTRUMENTS
-
Fuel Quantity Gauges (Left and Right)
-
Magnetic Compass (Backlit)
AVIONICS
-
Front & Rear Push-to-Talk Buttons
-
Emergency Locator Transmitter
-
Broadband Transmitting Antenna
-
Twin Headset LEMO Jacks
-
Cabin Speaker
-
Avionics Master Switch
SAFETY & CONVENIENCE
-
Parking Brake
-
Stall Warning Indicator
-
Entrance Step
-
Balanced Open-Section Aileron
-
Balanced Elevator
-
Oil Quick Drain
-
Wing Tie-Down Rings
-
Door Map Pocket
-
Velcro Aircraft Document File
ELECTRICAL
-
Electric Permanent-Magnet Starter
-
70-Amp Alternator
-
Battery Box with Sealed Battery
-
LED Pulse Landing Light
-
LED Navigation / Strobe / Position Lights
-
Voltage Regulator
-
Electric Fuel Boost Pump
-
Electrical Control Panel
COMFORT & APPEARANCE
-
Front Strut Speed Fairings
-

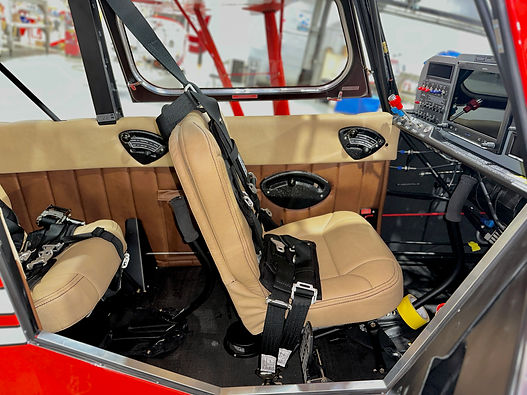

Foam Bucket Seats with Folding Backs
-
Adjustable Front Seat
-
Front and Rear 5-Point Harnesses
-
Light Gray Vinyl Headliner
-
Deluxe Textured Vinyl Interior
-
Front and Rear Cabin Heaters
-
Cabin Air Vents
-
Soundproofing
-
Tinted Windows (Gray)
-
Tinted Greenhouse Roof (Dark Gray)
-
Stainless Steel Exhaust
FEATURES
-
Certified Fully Acrobatic (+6 g, -5 g)
-
Dual Flight Controls
-
Quick-Jettison Door
-
40-Gallon Fuel System
-
Left-Opening Pilot Window
-
Steerable 8" Pneumatic Tailwheel
-
Baggage Access Door
-
Wheels with 6.00 × 6, 4-Ply Tires
-
Main Gear Fairings (Wheel Pants)
-
Lightweight Aluminum Gear
-
Powder-Coated Fuselage Frame
-
Carbon Fiber Floorboards
-
100-lb. Capacity Baggage Compartment
ADDITIONAL OPTIONS
-
Heated Pitot
-
Glider Tow Assembly
-
Competition Harness: Adds Padded Double Lap Belt with Ratchet
-
Engine Hour Meter with Oil Pressure Switch (in addition to EDM 930)
-
CFP-2 Additional Corrosion Protection
-
Oil-Prepped Fuselage Tubing
-
